Home / Cold Room
walking type cold room
    • Customizable Walk-in Freezer Cold Rooms

    • High Productivity Solution For Remote Control System

      • Seafood Cold RoomBeverage Cold RoomPotato Cold Room
    • Get A Quote
    • Description
    • Features

    Customizable Walk-in Freezer Cold Rooms





    Cold storage is a core facility in the field of cold chain logistics and low-temperature warehousing, mainly used to store various items that require strict temperature control in low-temperature environments.

    Common types include cold storage (usually with temperatures ranging from 0 ℃ to 10 ℃) and freezer (with temperatures mostly below -18 ℃, and some special cold storage can even be as low as -60 ℃ or lower).


    Cold storage features

    1. Cold storage maintains a low-temperature environment through a refrigeration system, accurately controlling temperature and humidity.

    2. Adopt efficient insulation materials and sealing technology to reduce the loss of cooling capacity.

    3. Professionalized internal layout, equipped with various shelves and loading and unloading facilities, optimizing space and logistics.

    4. Equipped with an automated control system to achieve temperature monitoring and energy-saving operation.

    5. Special design based on the characteristics of stored items to ensure quality.

    6. Adopt energy-saving and environmental protection technologies to reduce energy consumption and environmental impact.

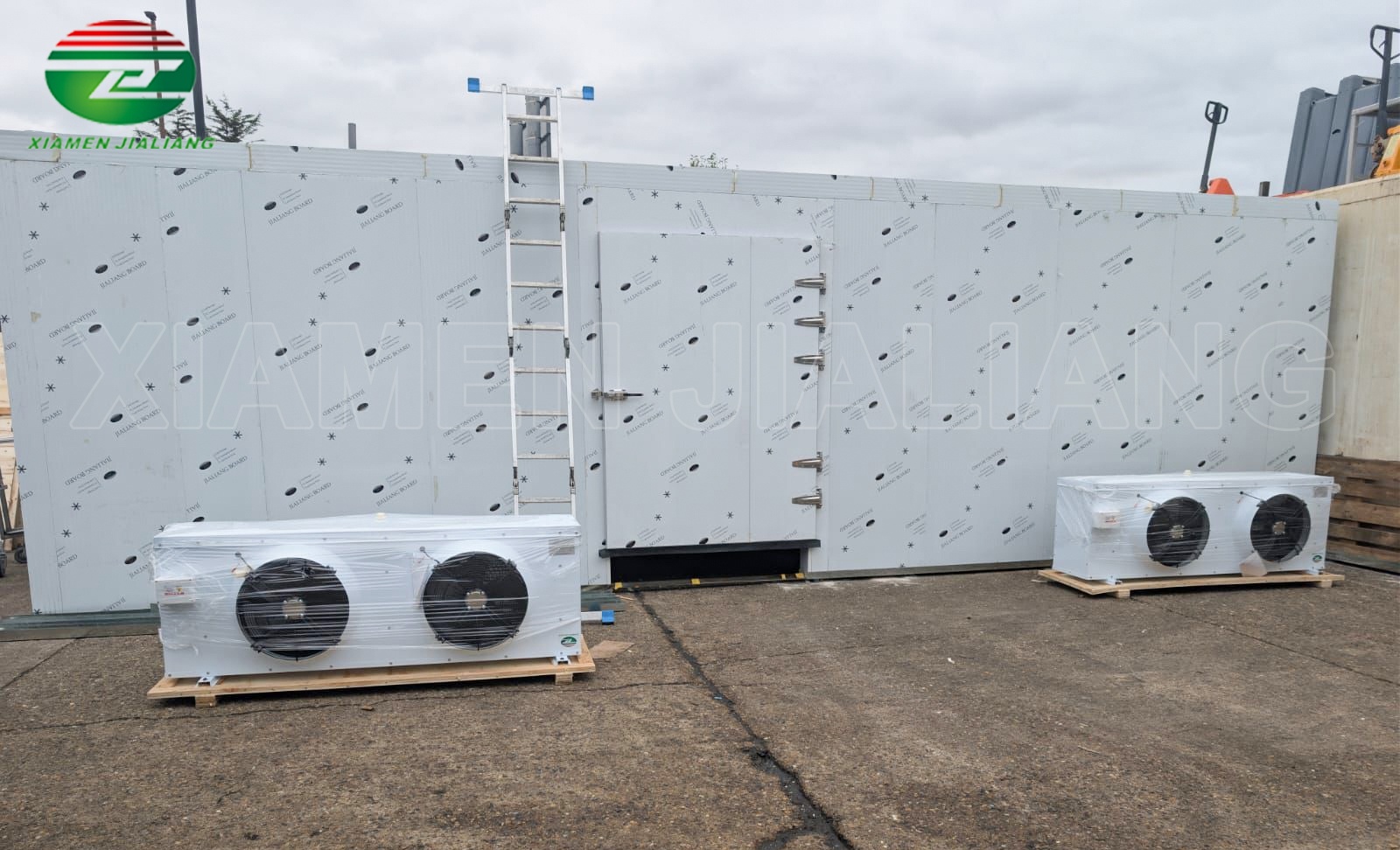

    Cold Room Size6(L)*2.7(W)*2.7(H) m
    PU Panel100MM
    Aluminum flower panel thickness1.5mm
    Cold Room Door800*1800mm
    Condensing Unit4FES-3Y,3HP
    EvaporatorDD30



    Condensing Unit

    Model: 4FES-3Y

    Horsepower:  3HP

    Compressor Brand: Bitz

    Voltage: 380V/50HZ/3PH


    Evaporator

    Model: DD30

    Horsepower: 3HP

    Refrigerant: R404a

    Voltage: 380V/50HZ/3PH
